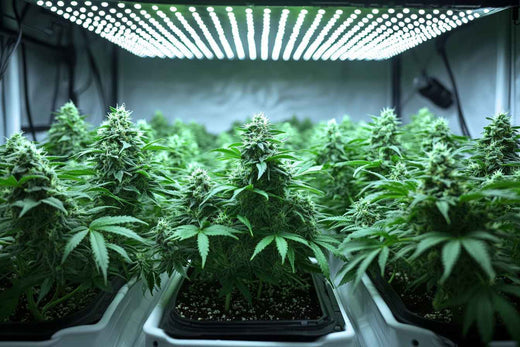

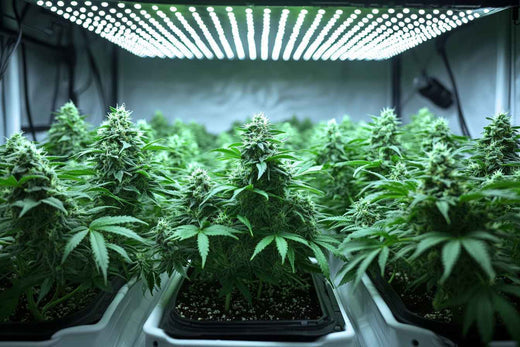

Learning how to dim LED grow lights starts with the fixture’s supported control method. Some lights have a built-in knob; others accept a compatible external controller, and some provide no user dimming at all. A plug-in timer controls operating time, not brightness. The first task is to identify which function your exact fixture and driver support.
This guide explains the equipment checks and measurements that make a dimming adjustment understandable. It is intended for general indoor horticultural lighting in South Africa, without prescribing crop-stage percentages or growing schedules. By the end, you should be able to distinguish a control setting from measured light and electrical input, and keep a useful record of how the system behaves.
Identify the fixture and driver first
Keep the fixture’s full model name, driver information and applicable manual together. If a controller is involved, add its model and the approved cable or adapter. Do not assume that all fixtures sold as dimmable accept the same signal or accessory.
The US Department of Energy’s explanation of LED drivers and dimmers shows why the pairing matters: driver design and compatibility with a dimmer affect light-output behaviour. A household wall dimmer is not automatically suitable for a grow-light driver.
Use only the control method specified by the manufacturer. Do not modify wiring, substitute an adapter by appearance or open a driver to discover whether it can be adjusted. Product-specific electrical work requires the appropriate instructions and a qualified person.
Know which control you are using
| Control | What it normally describes | What still needs checking |
|---|---|---|
| Built-in dimming knob | A local output adjustment | Range, minimum setting and whether it includes an off position |
| External controller | Commands sent to supported equipment | Exact compatibility and which control takes priority |
| Timer | Scheduled on/off operation | Clock retention and restart behaviour |
| Separate spectral channels | Control of documented groups of emitters | Whether the actual fixture has independent channels |
The 120W Quantum Board product listing, for example, describes an independent dimming knob. That is a model-specific feature, not a reason to assume that every LED panel or tube supports the same control arrangement.
Where both a knob and an external controller exist, consult the manual for their relationship. One may need a particular mode before the other operates. Do not infer priority from whichever display happens to be illuminated.
A percentage on the control is not a measurement
Treat the displayed percentage as a setting until the manufacturer documents how it relates to output. A halfway position does not, by itself, prove half the input watts or half the PPFD at the growing surface. Those are separate quantities that can be recorded independently.
| Record | What it tells you |
|---|---|
| Displayed setting | The command or knob position used |
| Input watts | Electrical power drawn under the measured conditions |
| PPFD readings | Light arriving at the stated measurement positions |
| Measurement distance | The geometry used for the readings |
| Runtime | How long the fixture operates at that setting |
Do not convert one column into another using an assumed proportional relationship. If a supplier supplies a dimming curve or test report, keep its model and test conditions with your record. Otherwise, describe the relationship as unverified.
Measure a change without changing everything else
Lumens can be measured, but they describe light with human-vision weighting. They are not a substitute for an appropriate plant-light measurement. University of Minnesota Extension explains why lumens and electrical watts answer different questions from the light available to plants.
For an equipment comparison, keep the fixture position, measurement plane and meter positions consistent. Note whether other lights or daylight contribute. If those conditions change at the same time as the dimmer, the readings cannot isolate the effect of the dimmer adjustment.
Use a light meter suitable for the source and record its measurement band. Apogee’s sensor documentation distinguishes conventional PAR and extended-PAR instruments. Keep that distinction visible when comparing reports rather than treating every number labelled “light” as equivalent.
A centre reading is useful but incomplete. Retain edge and corner readings when the question concerns a whole surface. For background on larger fixtures, see the high-power LED grow-light article. Keep any product claims separate from the measurements you record for your own equipment.
These measurements describe the equipment arrangement. They are not a prescription for a plant’s required light level and do not establish a crop outcome on their own.
Keep dimming separate from distance and spectrum
Moving a fixture changes the measurement geometry. Dimming changes the output command. If you do both together, write both down and avoid attributing the result to only one. Follow the fixture’s mounting and clearance instructions whenever its position changes.
Likewise, brightness adjustment does not establish independent spectrum control. A single dimmer may act on the fixture as a whole. Only documented separate channels justify a claim that particular emitter groups can be adjusted independently.
If the question is what a spectrum label means, use the full-spectrum LED explanation. Spectrum and dimming describe different features, so check both in the specification before choosing a control system.
Check the minimum setting and the off state
Establish from the documentation whether the lowest setting means reduced output or a complete off state. Also distinguish a commanded off state from electrical isolation. Follow the product instructions before cleaning, moving or servicing the fixture.
If the light flickers, fails to respond or behaves differently from the documented control method, stop treating the setting as reliable evidence. Check the exact combination with the supplier. Do not assume that a flickering light is simply reaching a useful lower-output limit.
Where several fixtures share a controller, confirm that the arrangement is explicitly supported. Identical commands do not prove identical measured output from different models, versions or installations. Keep each fixture’s identity in the record.
Calculate electricity from power and time
For a constant measured load, electricity use is input watts divided by 1,000, multiplied by operating hours. If the output programme varies, calculate each documented interval separately or use a suitable energy measurement over the whole period.
As a hypothetical example, 80 W for 10 hours uses 0.8 kWh. A 120 W load for the same period uses 1.2 kWh. The difference is 0.4 kWh. These are arithmetic examples, not claims about a particular dimmer position, model or suitable crop schedule.
Multiply the relevant energy by your applicable South African electricity rate. Keep other equipment separate and state whether fixed charges are excluded. A claim that dimming will save a particular percentage needs the actual before-and-after power and runtime, not just the position of a knob.
Confirm restart behaviour at your premises
Record what happens after a power interruption using the manufacturer’s recommended checking procedure. Does the fixture retain its setting? Does the controller retain the programme and clock? Does an app show the actual device state or only the last command?
Network loss and mains-power loss are separate questions. If the system has remote control, establish which functions remain available locally. The grow tent controller setup guide provides a wider compatibility checklist.
Keep expectations about heat and service life realistic
LED fixtures still produce heat. ENERGY STAR explains the role of heat sinks and thermal management in LED performance. Dimming is not a substitute for following the fixture’s operating conditions, mounting instructions and maintenance requirements.
Do not promise a fixed extension of service life from an unmeasured control change. A warranty, a predicted output-maintenance period and the life of the driver are different considerations. Keep the manufacturer’s terms with the equipment record.
The useful outcome is a clear record: the supported control method, the setting used, the measurements taken and the conditions under which they were taken. That makes future adjustments and equipment comparisons easier to interpret without turning a percentage display into an unsupported performance claim.
